The Go Chair® is #1 for portability! With convenient feather-touch disassembly, the Go Chair® allows you to experience lightweight travel and independence on the go. Enjoy dual swing-away storage bins and a compact turning radius for outstanding maneuverability. Available in an array of contemporary colors, it’s time to get out there with the Go Chair®!

Specifications 4-Wheel

Weight Capacity 300 lbs.
Maximum Speed1 Up to 3.7 mph
Ground Clearance3 1.7” at anti-tip, 1.8” at motor, 2.7” at footplate
Turning Radius3 25.5” with foot platform
Overall Length3 33” with front rigging
Overall Width3 25.5”
Seat-to-Ground Height 22”-23”
Seat-to-Deck Height 16.25”-17.25”
Front Tires 6” solid (caster)
Rear Tires 9” solid (drive)
Suspension Limited
Range Per Charge1,2 Up to 8.7 miles standard, 10.9 miles extended range
Total Weight Without Batteries3,7 67 lbs. (front & rear base)
Heaviest Piece When Disassembled3 36 lbs. (rear)
Standard Seating Foldable, compact, lightweight 18”x17”
Drive System Two-motor rear-wheel drive
Dual Braking System Electronic, regenerative
Battery Requirements3,4,5 (2) 18 AH, or (2) 18 AH extended range
Battery Charger 2-amp, off-board, 3.5 amp extended range
Warranty 5-year limited on frame;
13-month limited on batteries
13-month limited on electronics;
13-month limited on drive motors;

Features

  • 18” x 17”, 5-point swivel seat with latch release
  • Compact turning radius
  • Dual swing-away, under seat storage bins
  • Height and width adjustable armrests
  • Large footplate
  • One hand feather-touch disassembly
  • 60” lap belt
  • The heaviest piece is only 36 lbs.

Accessories

  • Armrest mount cane clip
  • Cane/crutch holder (3” single, 3” double)
  • Cup holder
  • Lap belt (50”, 70”)
  • Oxygen tank holder
  • Rear mount bracket
  • Saddlebag
  • Safety flag
  • Weather cover
  • XLR USB charger

Options

  • 18 AH extended range batteries
  • Additional battery pack

1 Varies with user weight, terrain type, battery amp-hour (AH), battery charge, battery condition tire type and condition. These specifications can be subject to a variance of +10%, -5%.

2 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of (+ or -) 3%.

3 AGM or Gel-Cell type required.

4 Tested in accordance with ANSI/RESNA, WC Vol 2, Section 4 & ISO 7176-4 standards. Results derived from theoretical calculation based on battery specifications and drive system performance. Test conducted at maximum weight capacity.

5 Battery weight may vary based on manufacturer.

6 Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections

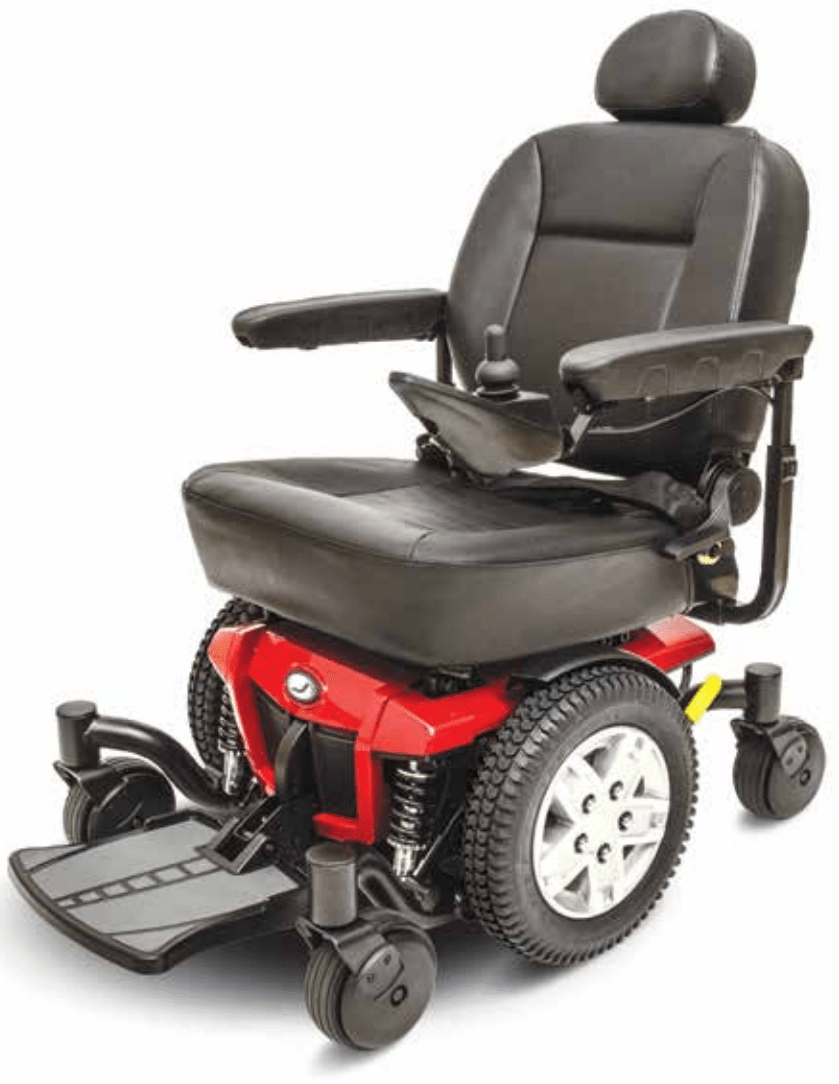

The Jazzy® 600 ES features patented Mid-Wheel 6® technology and Active-Trac® ATX Suspension for an extraordinary level of performance, maneuverability and the tightest turning radius in the Jazzy line. The Jazzy 600 ES offers true all-around performance indoors and out making it an excellent power chair choice.

Specifications


Features and Benefits


Weight Capacity 300 lbs.
Maximum Speed Up to 4 mph
Ground Clearance 2.75”
Turning Radius 20.5”
Overall Length 35.5”
Overall Width 24.5”

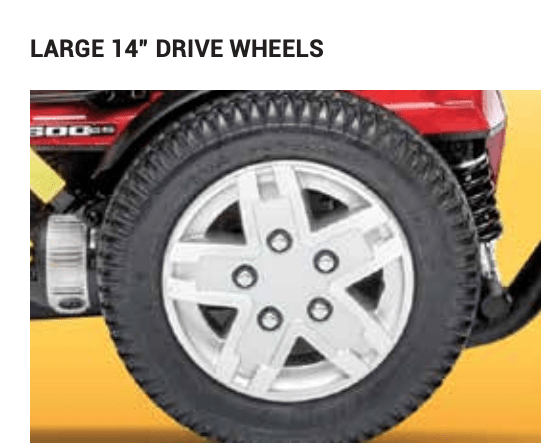

Drive Wheels 14”

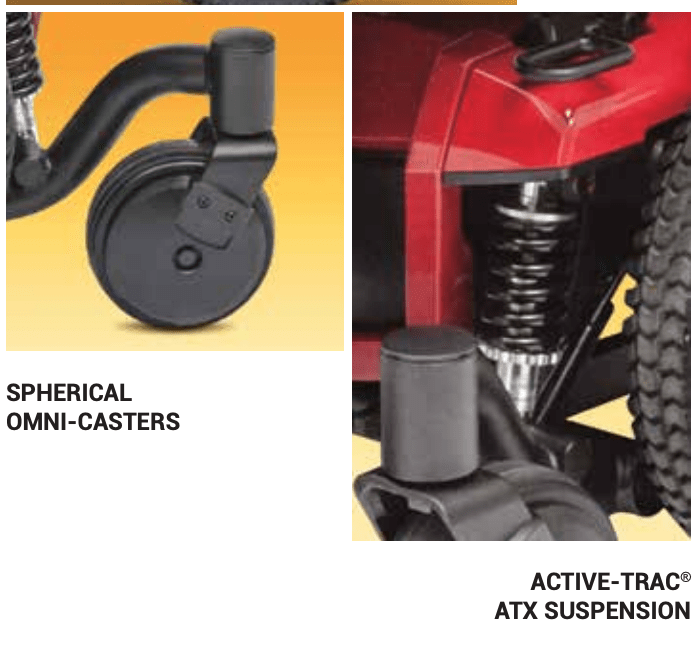

Front Wheels 6” solid OMNI-casters
Rear Wheels 6” solid OMNI-casters
Suspension Active-Trac® (ATX)
Drivetrain Two-motor, in-line,mid-wheel drive
Braking System Regenerative and electro-mechanical
Standard Electronics 50A, Dynamic Shark controller
Battery Charger Off-board, 5 amp
Per-Charge Range Up to 17 miles
Battery Requirements (2) 12 volt, NF-22
Battery Weight 25 lbs. each
Base Weight 124 lbs.
Standard Seat Weight 52 lbs. (high-back)
Standard Seat 18” x 18-20” and 20” x 18-20”
Max. Seat Dimensions 20” x 20”
Warranty Lifetime limited on frame; 13-month limited on batteries;
13-month limited on electronics;
13-month limited on drive motors
